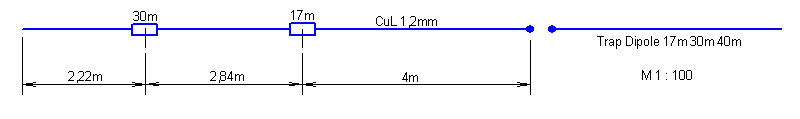

Trap Dipole 40 30 17 m Band by DJ9RB


Trap
10.1 MHz

Trap
18.1 MHz

Coax

Balun

Trap
18.1 MHz

Trap
10.1 MH

Trap = Koaxkabel
RG-316 Teflon (PTFE)

Kern N30 Siemens
D = 45 mm    d = 25 mm
Koaxkabel RG-316 Teflon (PTFE)

Trap = Koaxkabel
RG-316 Teflon (PTFE)

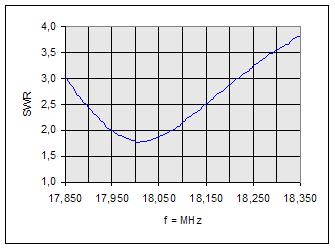

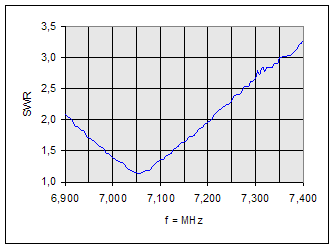

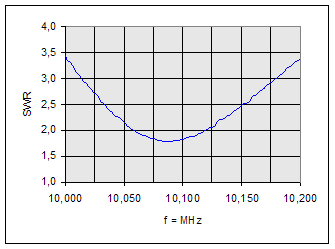

SWR gemessen mit CIA HF Analyzer
