| 160/80 m by VU2RBQ Jan. 2005 | ||
|

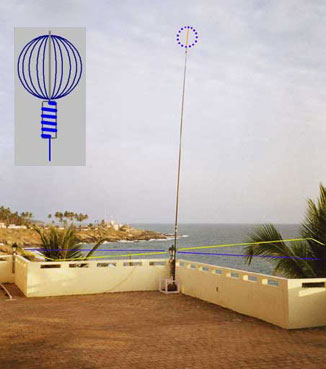

TLV80
(top loaded vertical)
antenna is doing a good job on 3.5 MHz. |
 |

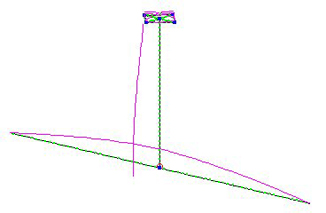

The simulation (EZNEC) shows the current (pink color). Z = 40 ohm. The radials are 20 meters long. |
 |
 |
 |

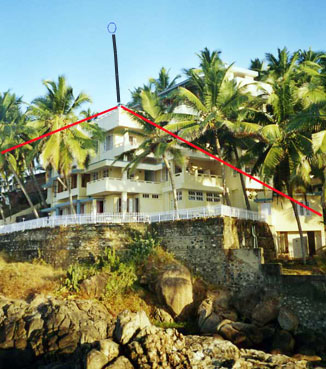

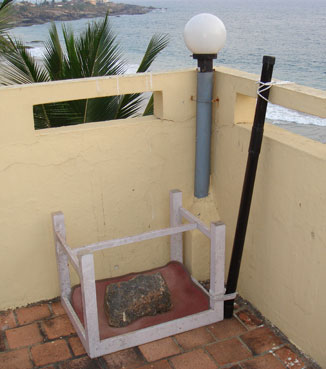

| 2 Radials = λ/2 on 3.5 MHz | TLV80 and 2 Radials | Mounting
the Mast |
 |
 |
|

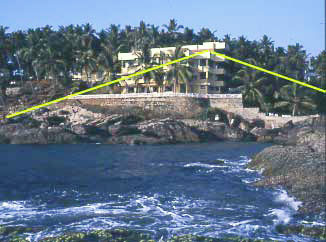

| Hotel Rockholm | λ/2-Dipole Antenna 1.8 MHz | Light
House Road |
 |
 |
|

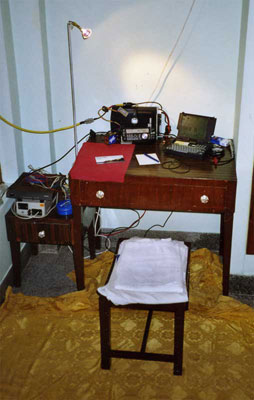

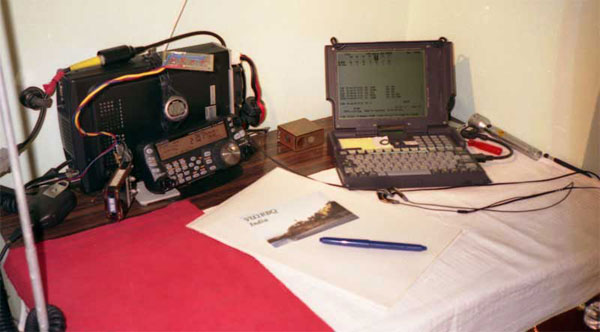

| TS-480 Transceiver | Quaderno Computer | VU2RBQ 2005 QTH Rockholm |
 |
||
|
|
||
