| TLV20 Vertical Antenna (14 MHz) using 2 Radials | |
| Top Loaded λ/4 Vertical Antenna using
2 Radials
(homemade) |
|
  |
  |

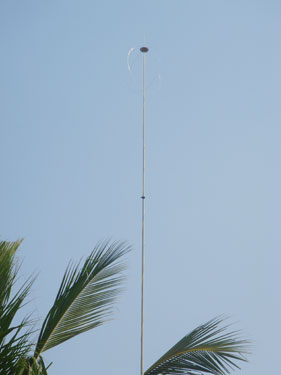

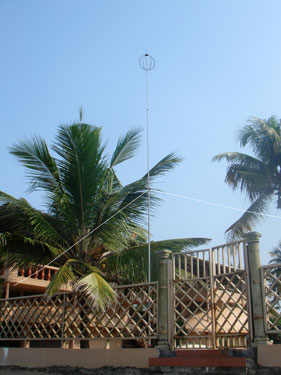

| Mounting the Top Load on a DX-Wire MINI Mast. TLV20 and 2 elev. Radials | |
 |
 |
|

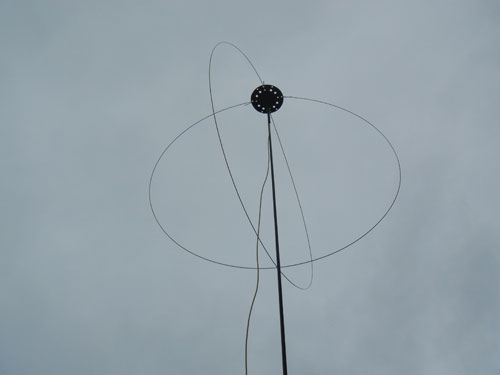

Stainles Steel Wire 1mm. The Wire Sphere is approximate 0.44 m (diameter) |

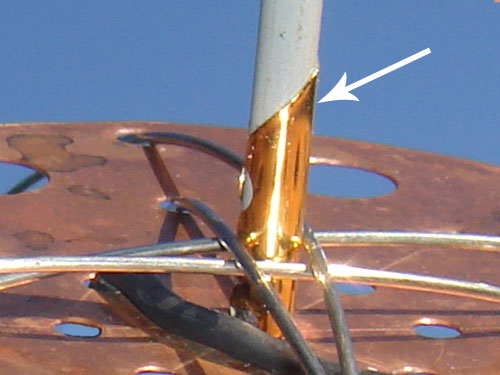

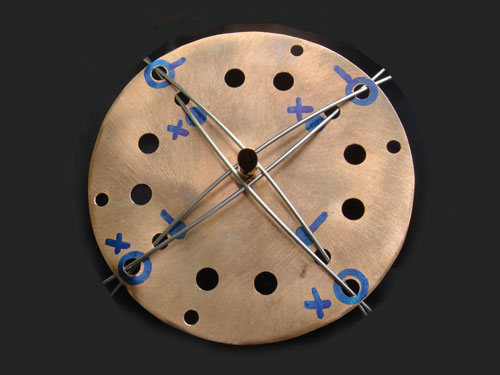

Top
Load Connection with 83 mm, 50 mm Diameter of Holes (4 mm) |
  |
|
 |
 |

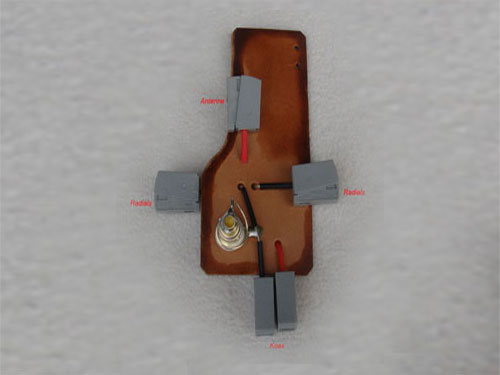

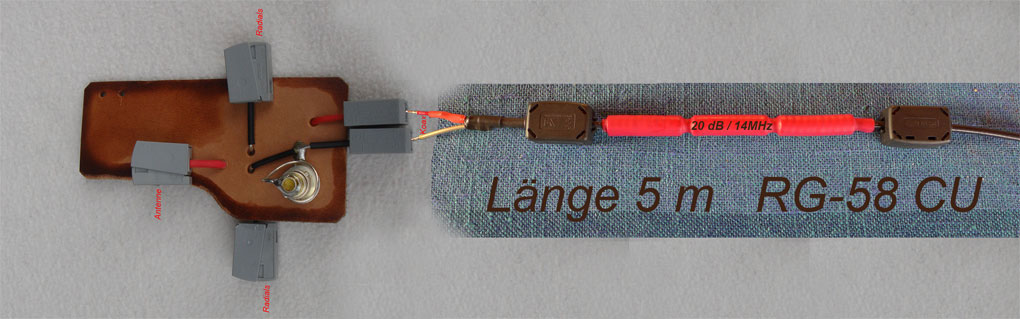

| Connection,
Radials,
Vertical Wire, Coax Cable |
|
 |
|
 |
|
|

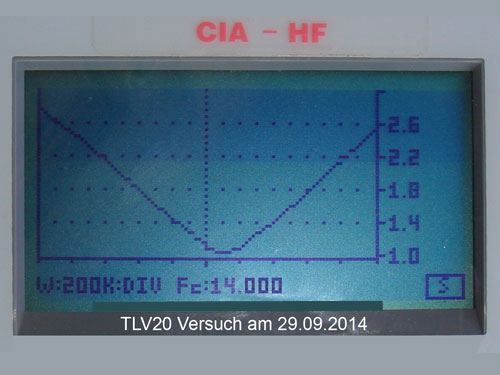

TLV20, Low SWR
(Complex Impedance Analyzer) |

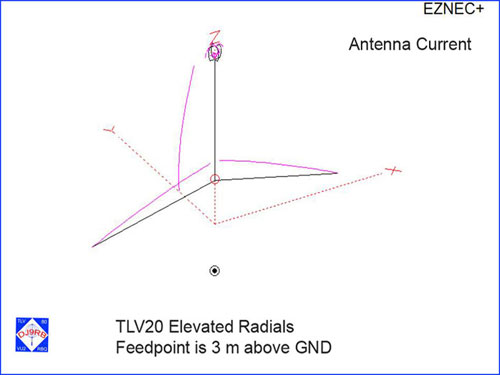

Simulation
using EzNec.Vertical wire = circa 3.6m, Radial = circa 4.7m long. |
|
|
|
