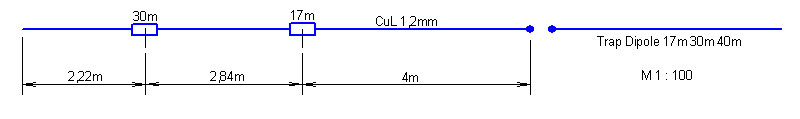

Portabel Dipol 40 30 17 m Band


Trap
10.1 MHz


Trap
18.1 MHz

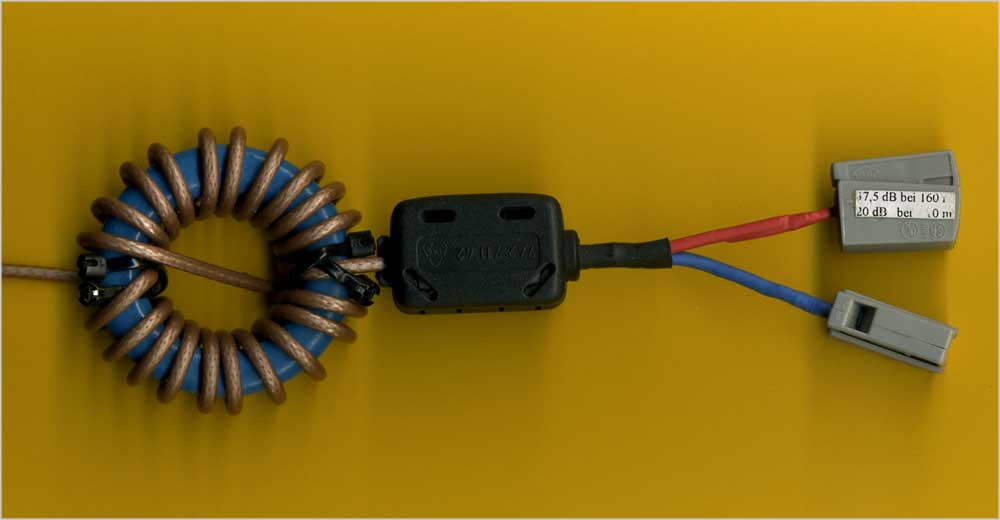

Balun


Trap
18.1 MHz


Trap
10.1 MHz


Trap = Koaxkabel
RG-316 Teflon (PTFE)


Kern N30 Siemens
D = 45 mm    d = 25 mm
Koaxkabel RG-316 Teflon (PTFE)


Trap = Koaxkabel
RG-316 Teflon (PTFE)

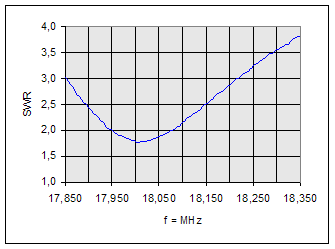

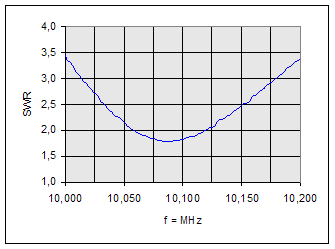

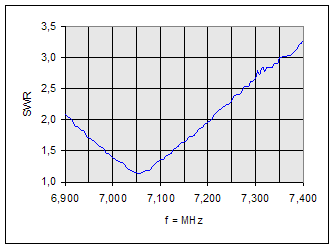

SWR gemessen mit CIA HF Analyzer

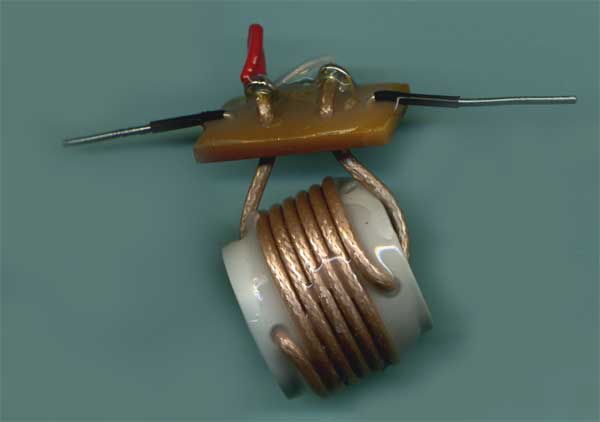

Trap 18 MHz

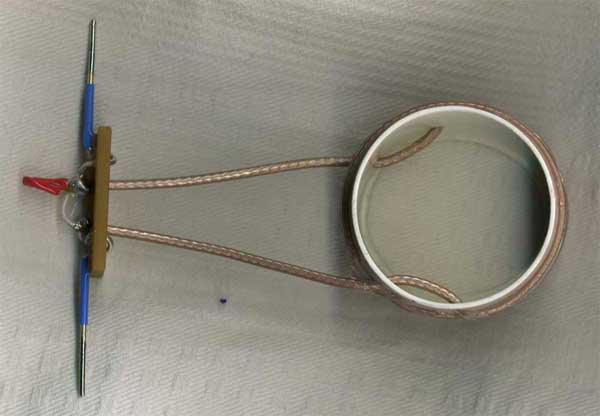

Trap 10 MHz
