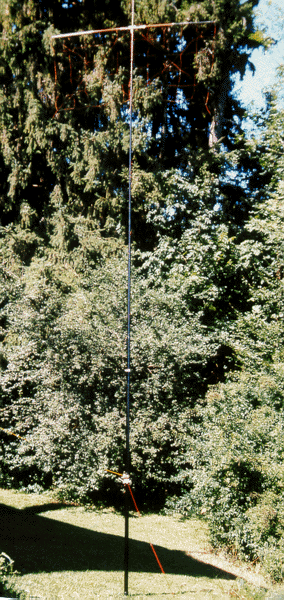

TLV40MESH (Top Loaded Vertical) using 2 Radials

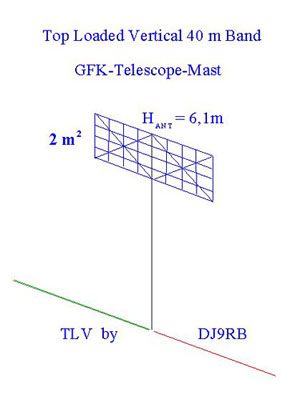

Vertical Antenna (40m Band) with elevated Radials

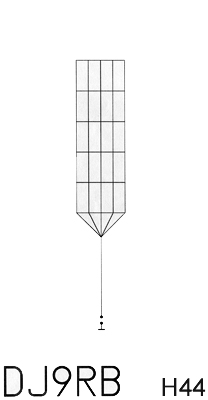

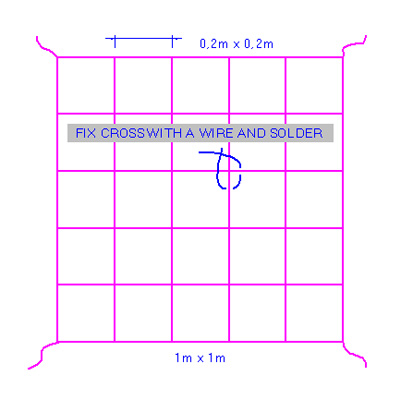

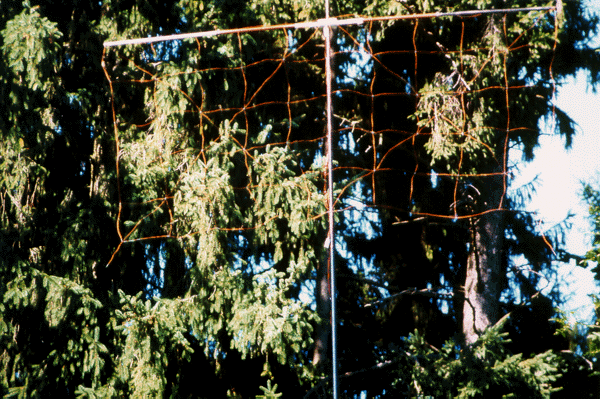

Top Load is a Mesh 2 x 1 meter (Netz 2x1m)
enamelled wire 0.5 mm diameter (CuL 0,5mm)

---

---

---

---

---

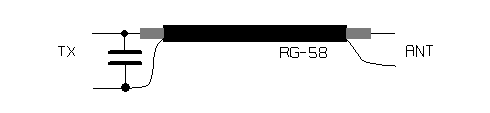

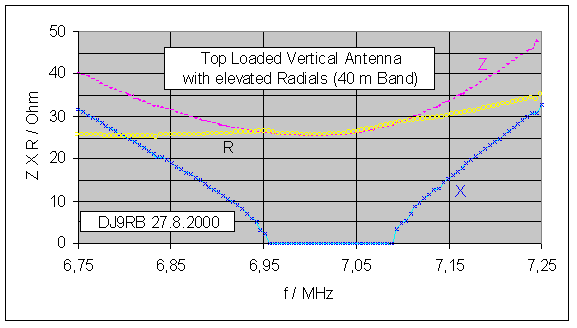

For best VSWR a Coaxcable RG-58 (2,74 meters) and a Capacitor (320pF) is used

---
