Antenna Matching Network Design(homemade Tuner) f = 1.8 MHz |
 |

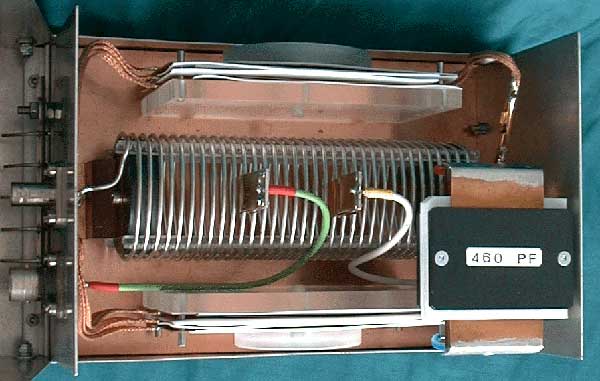

| Tuner is Optimized for the 160m Band (1.8 MHz) |
 |

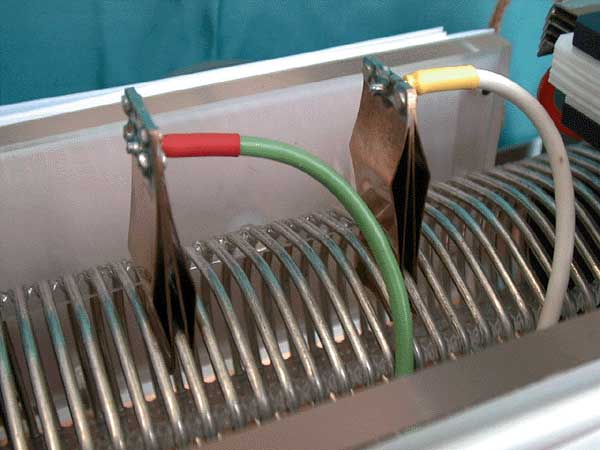

| Coil and Clamp (Tap) |
 |

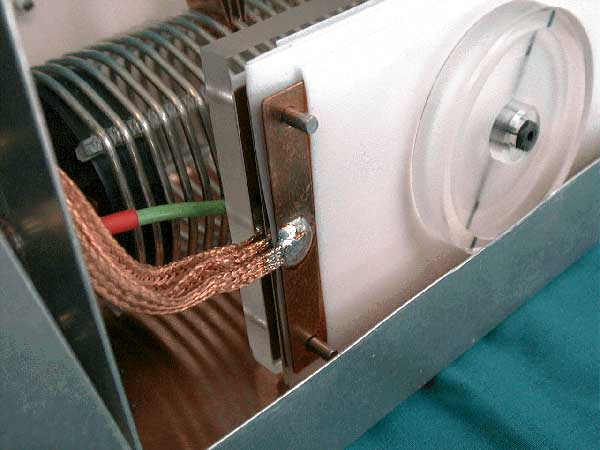

| Capacitor. Q over 1000 (homemade) |
 |

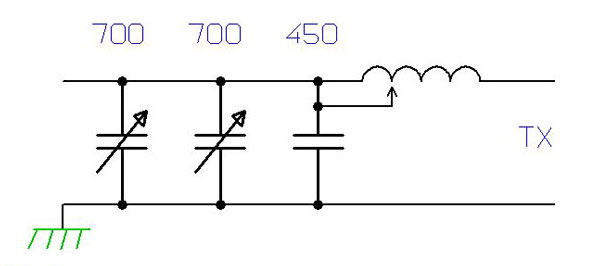

| Functional Schematic 1.8 MHz Tuner |
Antenna Matching Network Design
(homemade Tuner) f = 1.8 MHz
Tuner is Optimized for the 160m Band (1.8 MHz) Coil and Clamp (Tap) Capacitor. Q over 1000 (homemade) Functional Schematic 1.8 MHz Tuner
